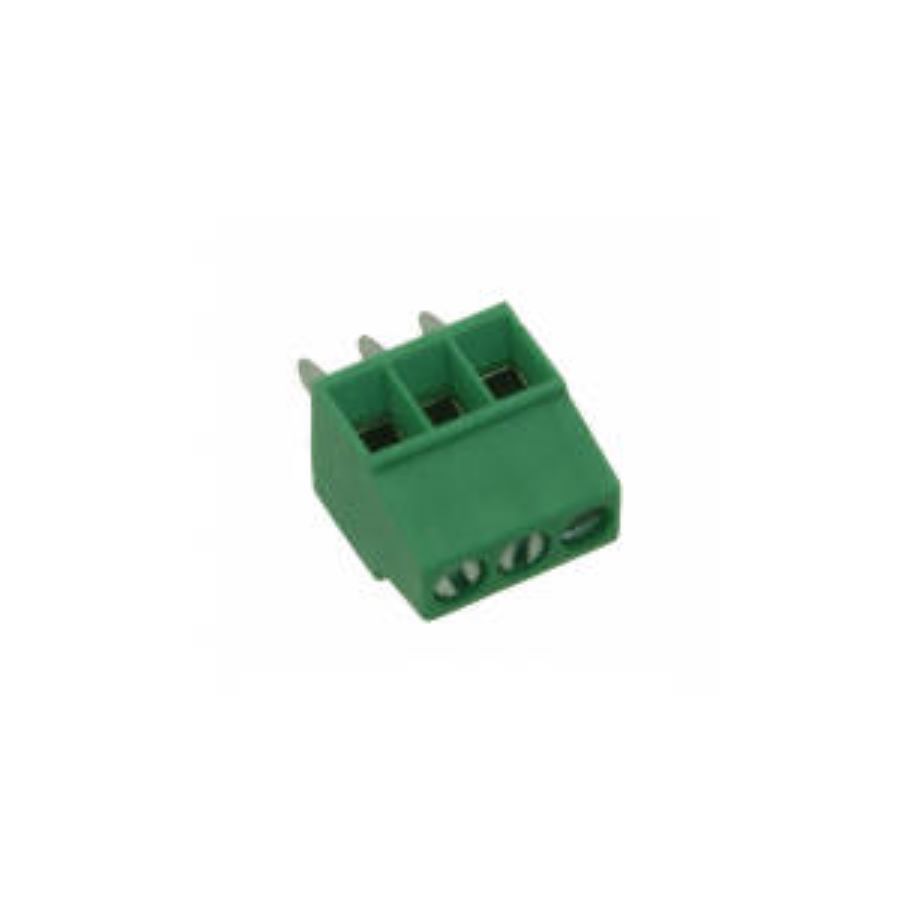

OSTVN03A150
Manufacturer:
On Shore Technology
Mfr.Part #:
OSTVN03A150
Datasheet:
Description:
Terminal Blocks Through Hole 3 2.54 mm 6 A 125 V 30 AWG to 20 AWG
| Parameter | Value |
|---|---|
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 3 |
| Height | 8.8 mm |
| Packaging | Bulk |
| Voltage Rating | 125 V |
| RoHS | Compliant |
| Voltage | 125 V |
| Contact Plating | Brass |
| Contact Material(Contact Finish) | Tin |
| Pitch | 2.54 mm |
| Current | 6 A |
| Current Rating | 6 A |
| Orientation | Horizontal with Board |
| Color | Green |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Positions Per Level | 3 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 20 AWG |
| Plating | Brass, Steel |
| Schedule B | 8536695050 |
| Connection Method | Screw |
| Wire Gauge Range | 30 AWG to 20 AWG |
Stock: 9612
Distributors
pcbx
pcbxUnit Price$0.78835
Ext.Price$0.78835
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.78835 | $0.78835 |
| 10 | $0.57182 | $5.71820 |
| 25 | $0.49776 | $12.44400 |
| 50 | $0.44934 | $22.46700 |
| 100 | $0.40773 | $40.77300 |
| 300 | $0.37041 | $111.12300 |
| 500 | $0.33651 | $168.25500 |
| 1000 | $0.31512 | $315.12000 |
| 3000 | $0.29769 | $893.07000 |
| 5000 | $0.28123 | $1406.15000 |
